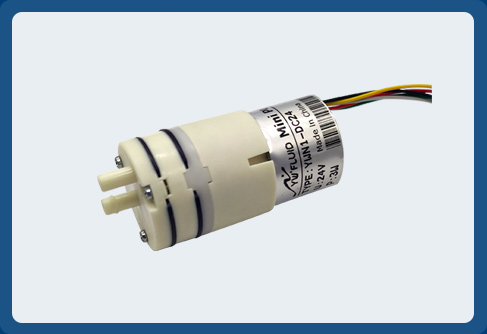

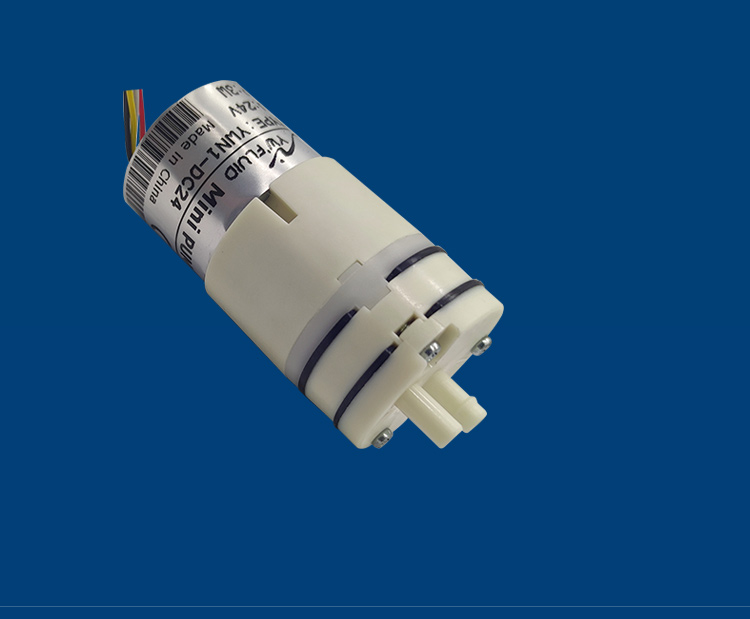

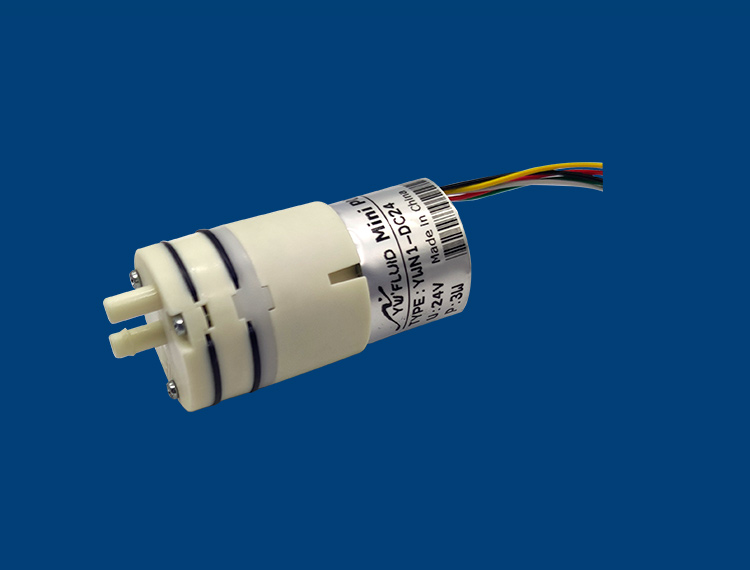

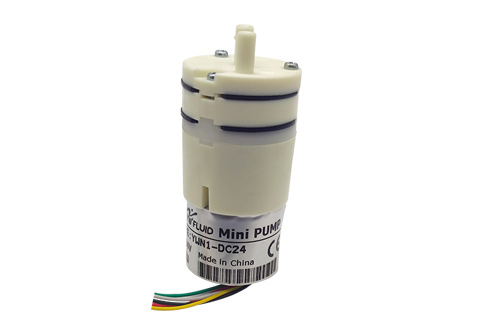

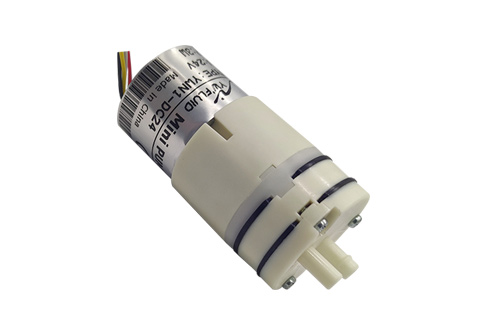

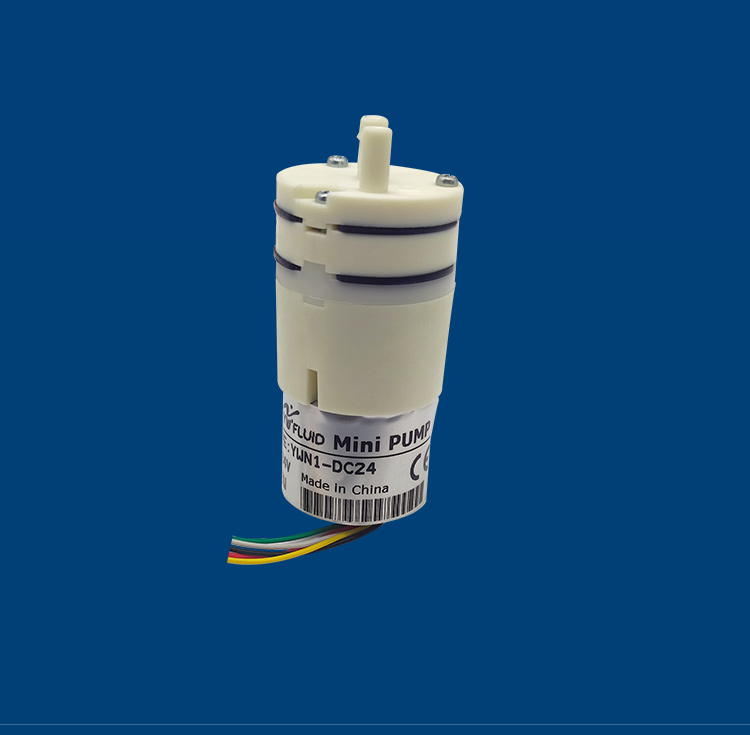

YWN1 mini diaphragm pumps are based on the positive displacement pumps.It is powered by the rotation of motor. The eccentric vane drives the rubber inside to reciprocate, forming a
For product pricing, customization, or other inquiries:
-Ultra small size, sturdy structure, fine workmanship
-Brushless DC motor, adjustable speed
-Corrosion and acid and alkali resistance
-Durable dry rotation, strong
Type | Air | Liquid |
Rated voltage | 12V/24V | |
Flow rate | above 1.3L/min | 320±80ml/min |
Current | 320mA | 250mA |
Vacuum | above -40Kpa | |
Suction head | -- | 2m+ |
Max pressure | 90Kpa+ | |
Lifetime | 3000H+ | |
Noise level | <50db | |
Start-up voltage | 8V | |
Net weight | 40g | |
Working temp | 5~50℃ | |
Ambient humidity | 0~90%RH | |
Wiring Diagram | |||
Pin1 | “+” | Red | 12VBLDC(max. voltage range 10-18V) 24VBLDC(max. voltage range 10-28V) |
Pin2 | “-” | Black | |
Pin3 | White | PWM speed adjusting（connect to negative pole） | |
Pin4 | Yellow | output signal (6 pluse in a circle) | |
Green | No | ||
Product Applications:
Laboratory Equipment
liquid sampling
liquid distribution
liquid transmission
liquid chromatography
mercury analyzer
liquid transfer
liquid packing
turbidimeter
refractometer
reagent sampling
chlorofluorocarbon decomposing unit
fuel cell system
methanol concentration meter
sugar content analyzer
Chemical Industry
liquid transport
sample analysis
detergent dispenser
rinse additive dispenser
sanitizer dispenser
Food Engineering
liquid packaging
filling
liquid transmission
ice cream machine
coffee machine
fermentation equipment
drinks dispensing
water sterilizer
Medical Equipment
diabetes mellitus test analyzer
hemoglobin analyzer
dental care
endoscope
sterilizer
air mattresses
blood analyzers
blood pressure moniors
compression therapy
dental carts
dialysis machine
drug delivery
nebulizers
nitrogen generators
oxygen concentrators
respirators(ventilators)
wound aeration
drug delivery
Environmental Science
sewage sampling
liquid transmission
water analysis
fuel cell system
water treatment
drip irrigation
Printing Industry
large format inkjet printer
textile printer
edible ink printer
inkjet Printer
Family Usage
watering flowers
green plant drip irrigation
dishwasher
bonsai irrigation pump
on premise laundry
dry cleaning machine
sprinkler irrigation
drinking fountain
garden sprayer
vacuum cleaner
Automobile industry
Exhaust gas treatment
Tunnel washer
Car washing
Exhaust gas recovery
Other Usage
wafer polisher
electrode polisher
multiple hybridization unit
immunocytochemical staining unit
cell culture machine

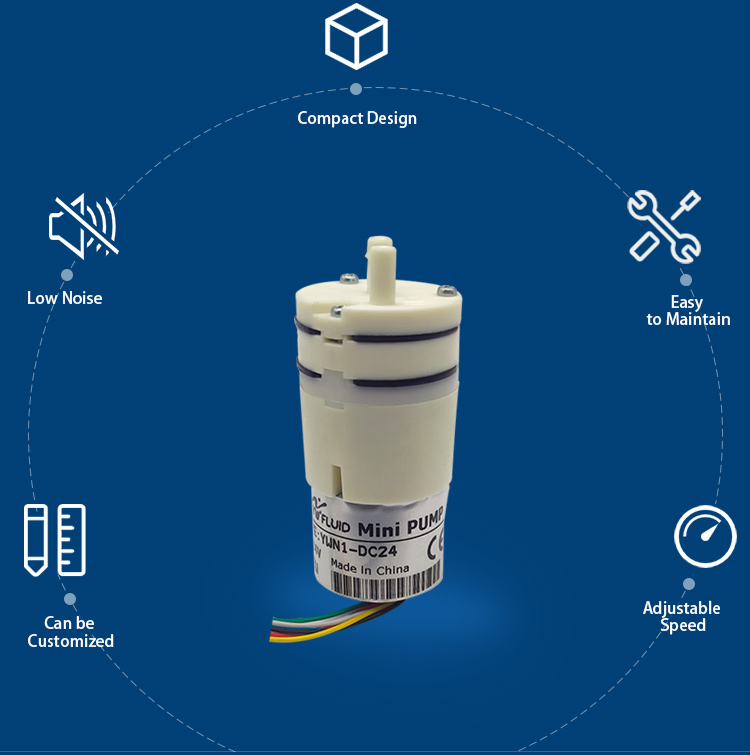

Product Features:
Ultra small size, sturdy structure, fine workmanship
Brushless DC motor, adjustable speed
Corrosion and acid and alkali resistance
