Extreme chemical resistance,compact size,strong power,used in car,food,medicine,inspection,printing equipment etc.
For product pricing, customization, or other inquiries:
Main Functions and Features:
-YW05 can be used for vacuum, pressure or alternating vacuum and pressure operations.
-YW05 micro diaphragm pump is designed according to the principle of positive displacement pump.It is to control the diaphragm inlet and outlet, the formation of a power drive drive mechanism to push the piston reciprocating movement, through the hydraulic diaphragm back and forth to do work to suction and discharge liquid.
-YW05 series pumps rely on our unique brushless dc motor design, for maintenance - free performance set a new standard.
-YW05maximize flexibility by providing multiple installation options。
-Our 100% oil-free and grease-free diaphragm pump and compressor designs maintain the purity of the system and pass the international certified.
Performance Parameter:
Air parameter:
| Model | Air flow | Negative pressure | Positive pressure | Motor | Voltage |
| YW05-A | 3L/min | -0.05MPa | 0.1MPa | DC,BLDC | 12V,24V |

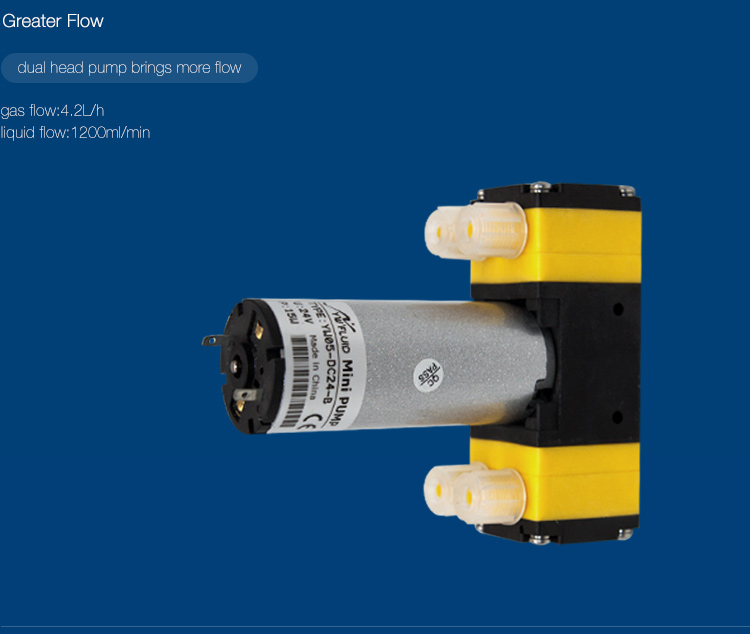

| YW05-B (dual head) | 4.2L/min | -0.05MPa | 0.1MPa | DC,BLDC | 12V,24V |
Liquid parameter:
| Model | Liquid flow | Suction head | Pressure head | Motor | Voltage |
| YW05-A | 600ml/min | 3m | 10m | DC,BLDC | 12V,24V |
| YW05-B (dual head) | 1200ml/min | 3m | 10m | DC,BLDC | 12V,24V |
Size and Selection:

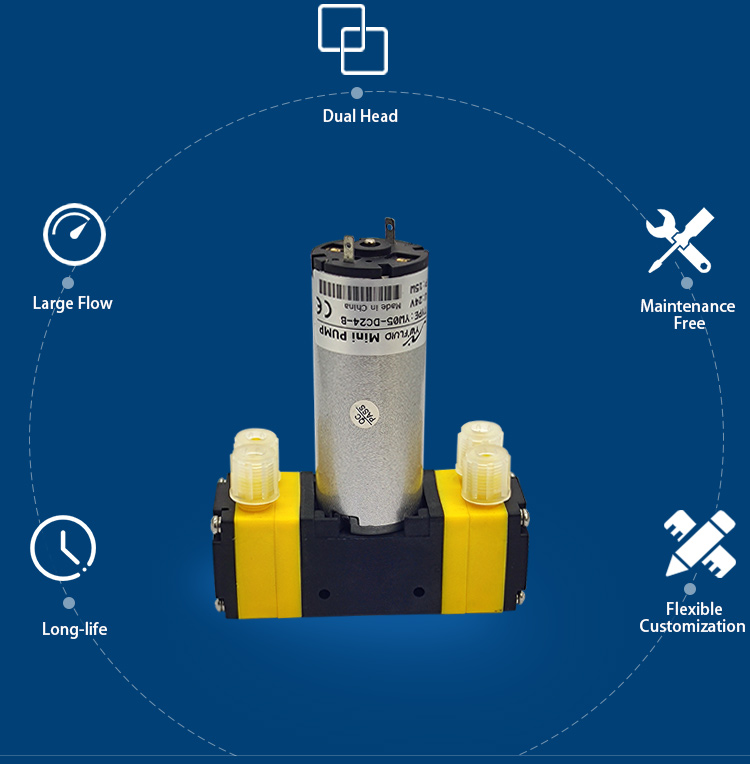

Product Features:
Small yet powerful
High Precision
Pressure Range:0.1Mpa Vacuum Range:-0.05Mpa
Maintenance Free
rely on our unique brushless dc motor design,
for maintenance - free performance set a new standard.

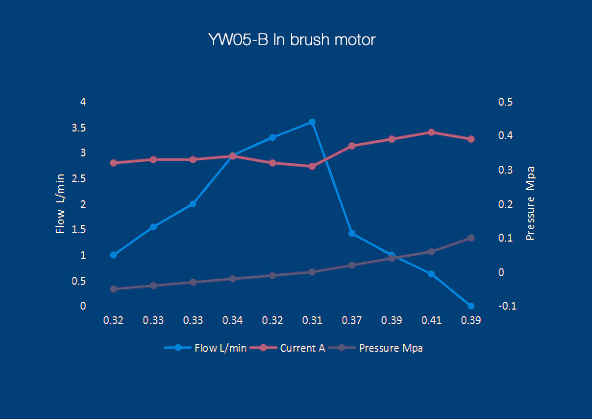

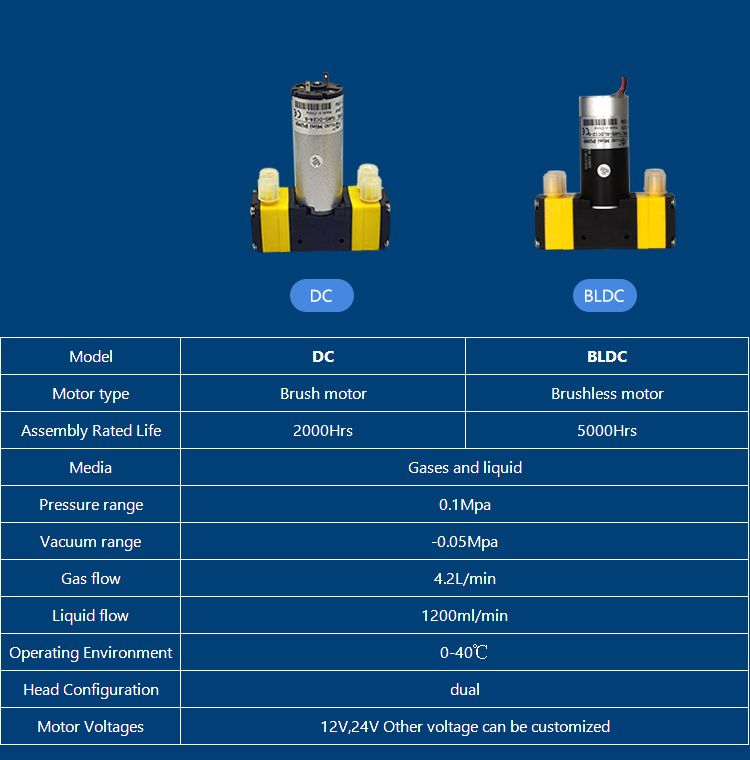

Performance Specifications
Typical Flow Diagram

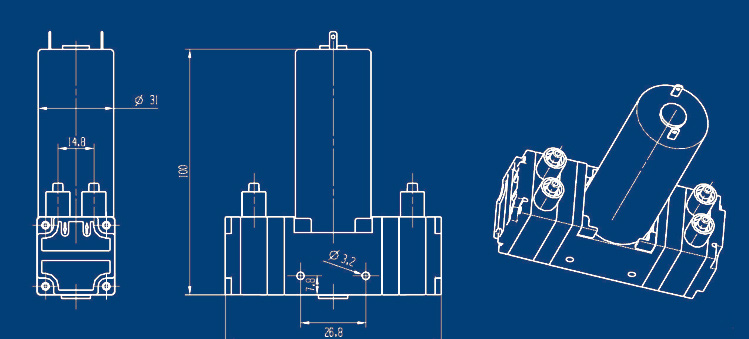

Dimensions：Unit (mm)
Product Applications:
Laboratory Equipment
liquid sampling
liquid distribution
liquid transmission
liquid chromatography
mercury analyzer
liquid transfer
liquid packing
turbidimeter
refractometer
reagent sampling
chlorofluorocarbon decomposing unit
fuel cell system
methanol concentration meter
sugar content analyzer
Chemical Industry
liquid transport
sample analysis
detergent dispenser
rinse additive dispenser
sanitizer dispenser
Food Engineering
liquid packaging
filling
liquid transmission
ice cream machine
coffee machine
fermentation equipment
drinks dispensing
water sterilizer
Medical Equipment
diabetes mellitus test analyzer
hemoglobin analyzer
dental care
endoscope
sterilizer
air mattresses
blood analyzers
blood pressure moniors
compression therapy
dental carts
dialysis machine
drug delivery
nebulizers
nitrogen generators
oxygen concentrators
respirators(ventilators)
wound aeration
drug delivery
Environmental Science
sewage sampling
liquid transmission
water analysis
fuel cell system
water treatment
drip irrigation
Printing Industry
large format inkjet printer
textile printer
edible ink printer
inkjet Printer
Family Usage
watering flowers
green plant drip irrigation
dishwasher
bonsai irrigation pump
on premise laundry
dry cleaning machine
sprinkler irrigation
drinking fountain
garden sprayer
vacuum cleaner
Automobile industry
Exhaust gas treatment
Tunnel washer
Car washing
Exhaust gas recovery
Other Usage
wafer polisher
electrode polisher
multiple hybridization unit
immunocytochemical staining unit
cell culture machine

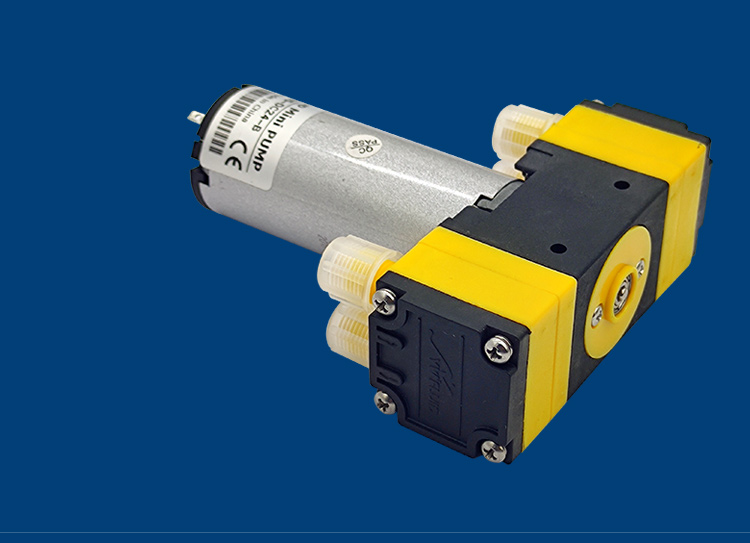

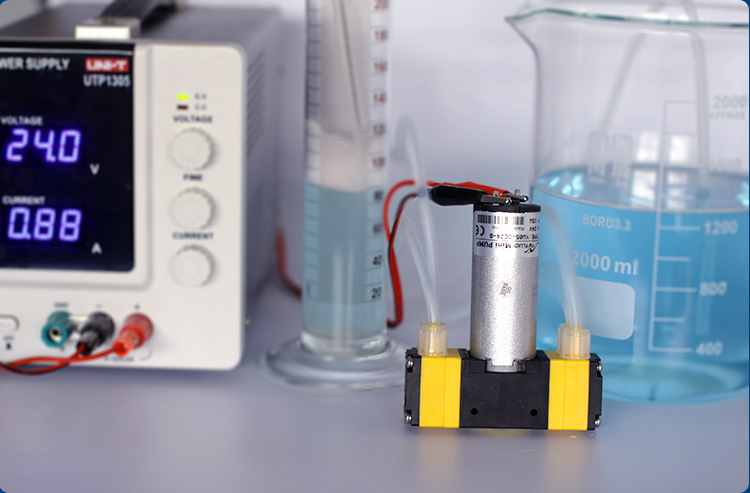

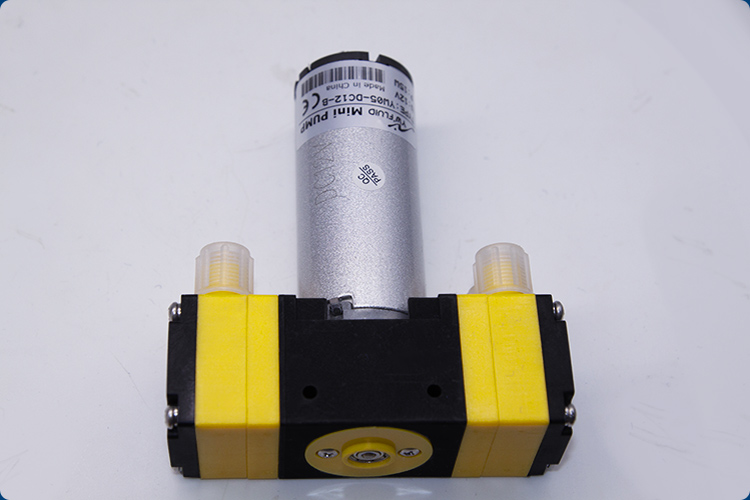

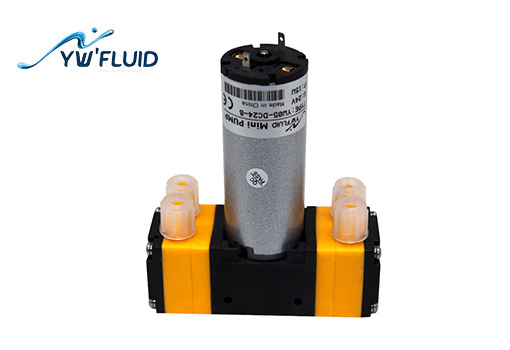

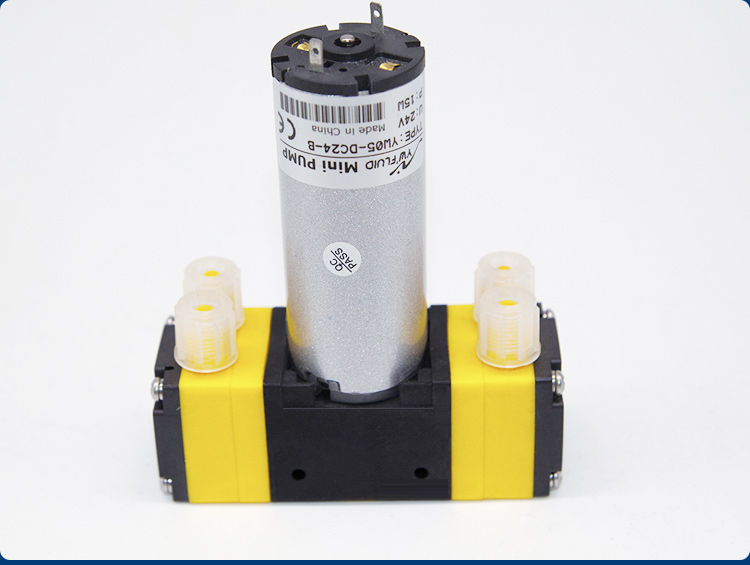

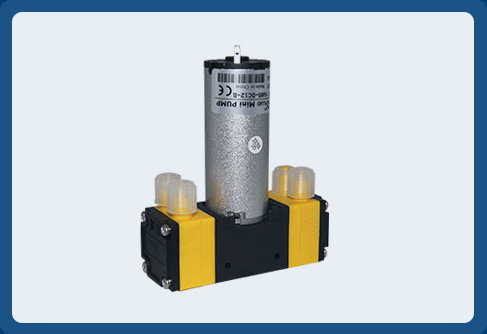

Product Photos
